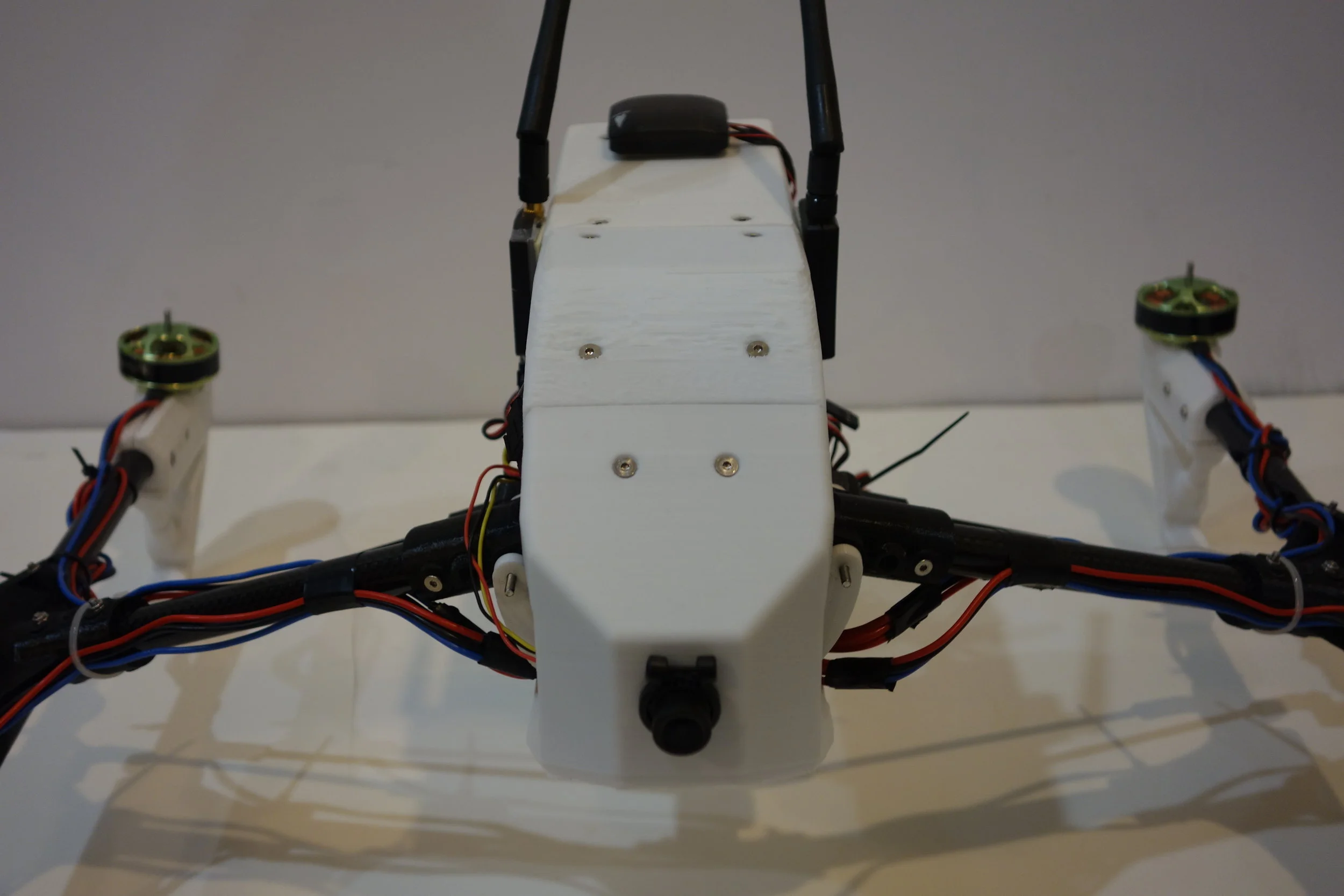

Front View

Front View

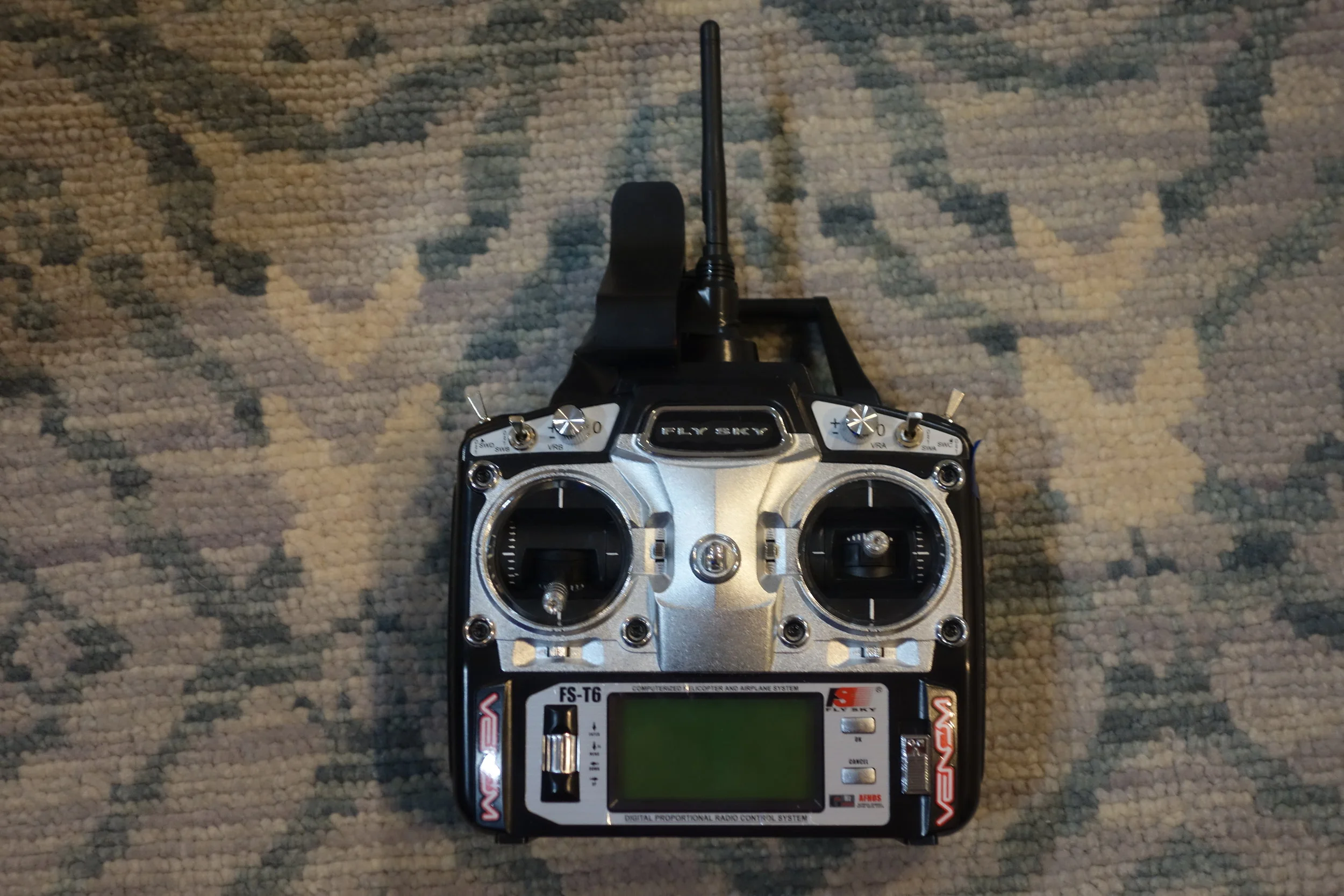

Transmitter

Transmitter

Drone (Version 2):

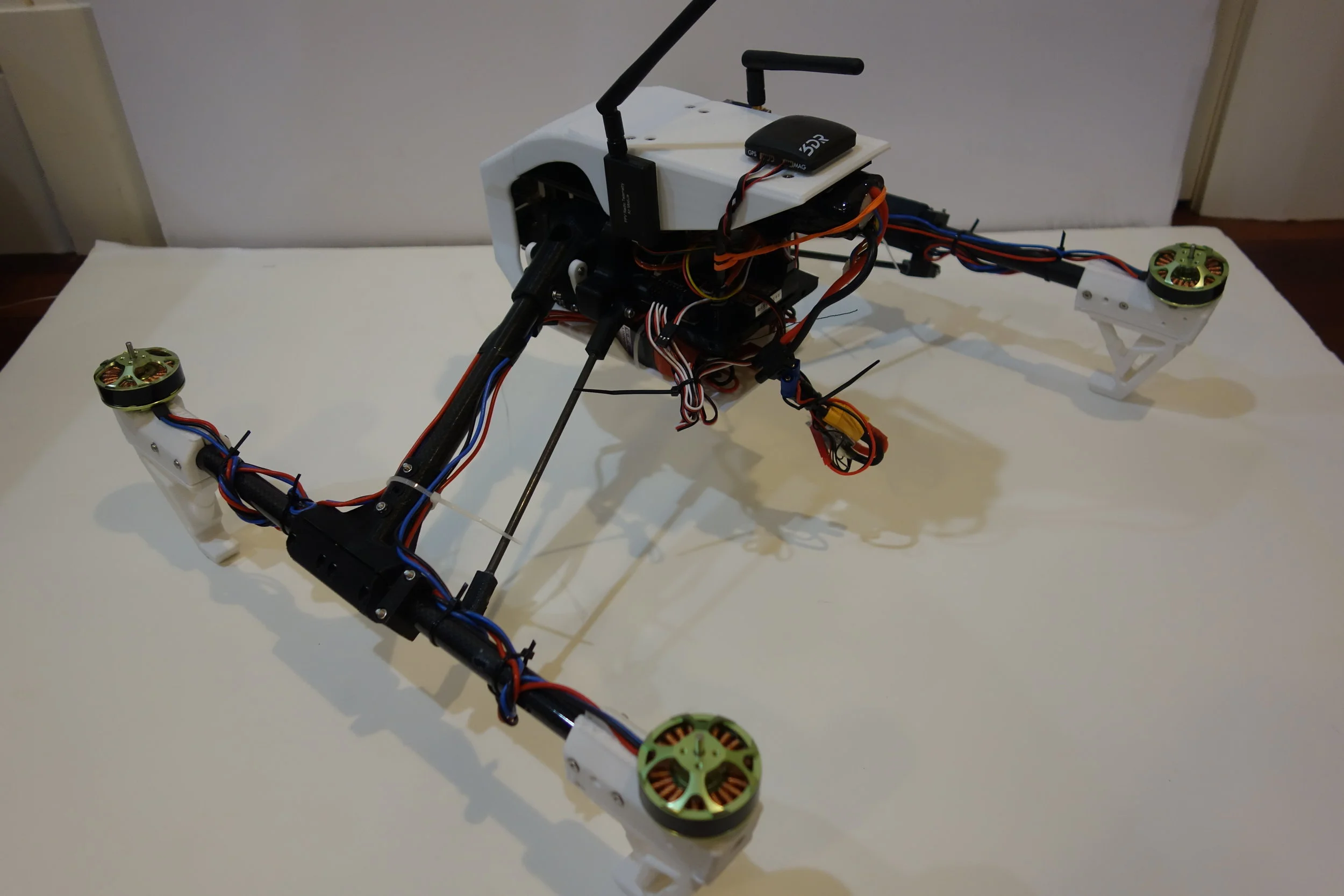

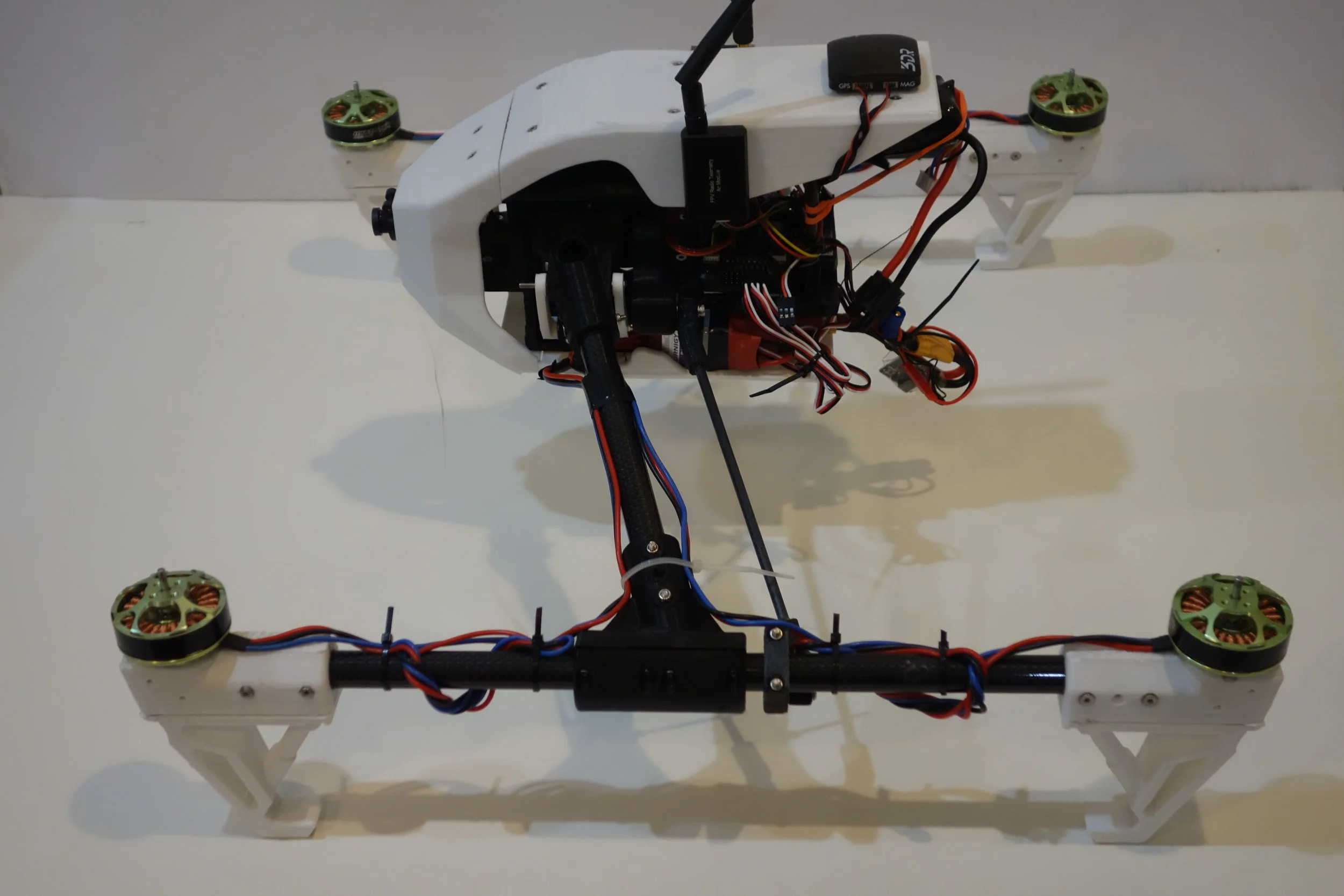

This is the second revision of the drone I built during the summer. I build this drone around the beginning of the school year of 2016. Most of the electronics are the same as the previous drone with the major exceptions of the motors, ESC’s and Props. The frame is modeled after the DJI Inspire 1 and is made out of 3d printed parts and carbon fiber tubes. I used an online thread to help me with the build:  http://www.thingiverse.com/thing:909384, http://bit.ly/2gMIH2U.

Full Specs:

  • Frame: DJI Inspire based, 3d Prints, Carbon Fiber

  • Motors: Turnigy Multistar 4108 600kv

  • ESC’s: Turnigy Plush 30amp ESC with BEC

  • Flight Controller: Ardupilot Mega (APM) 2.8

  • GPS: 3dr Ublox GPS

  • Receiver & Transmitter: FlySky FS-T6 Transmitter And Receiver Combo

  • Camera: Runcam pz0420m

  • Video Transmitter: Eachine TS840 40 Channel Transmitter

  • Battery: Venom 20C 3S 4000mAh 11.1V LiPo

  • Props: 13 inch carbon fiber T style two blade props

Drone Arm Transition

Drone Motor Test
